Here we are sharing everything about VDSL Modem. The use of fast Internet connections has increased over a previous couple of years. As more people buy home computers and make home networks, the demand for broadband (high-speed) connections steadily increases. Two technologies, cable modems and Asymmetric Digital telephone line (ADSL), currently dominate the industry. While both of those technologies provide Internet connections that are repeatedly faster than a 56K modem, they still aren’t fast enough to support the mixing of home services like digital television and video-on-demand.

However, different DSL technology referred to as very high bit-rate DSL (VDSL) is seen by many because of the next step in providing an entire home-communications/entertainment package. There are already some companies, like the U.S. West (part of Qwest now), that provide VDSL service in selected areas. VDSL provides a fantastic amount of bandwidth, with accelerates to about 52 megabits per second (Mbps). Compare that with the highest speed of 8 to 10 Mbps for ADSL or cable modem, and therefore the move from current broadband technology to VDSL might be as significant because the migration from a 56K modem to broadband. As VDSL changes more common, you’ll assume that integrated packages are going to be cheaper than the entire amount for current separate services.

In this article, you’ll study VDSL technology, why it’s essential, and the way it compares to other DSL technologies. But first, let’s take a glance at the fundamentals of DSL. A typical telephone installation within us consists of a pair of copper wires that the telephone company installs in your home. A few copper wires have many bandwidths for carrying data additionally to voice conversations. Voice signals use only a fraction of the available space on the wires. DSL exploits this resting capacity to possess information on the wire without disturbing the line’s ability to hold conversations.

Standard Telephone Company limits the frequencies that the switches, telephones, and other equipment can carry. Human voices, speaking in familiar conversational tones, are often taken during a frequency range of 400 to three, 400 Hertz (cycles per second). In most states, the wires themselves have the potential to handle frequencies of up to several-million Hertz. Modern equipment that sends digital data can assuredly use far more innumerable of the phone line’s capacity and DSL does just that. Moreover, the VDSL comes with various models and you can buy the best modem routers for your home & office.


VDSL Speed

The VDSL is able to do incredible speeds, as high as 52 Mbps downstream (to your home) and 16 Mbps upstream (from your home). That’s much faster than ADSL, which provides up to eight Mbps downstream and 800 Kbps (kilobits per second) upstream. But VDSL’s fantastic performance comes at a price: It can only operate over the copper line for a brief distance, about 4,000 feet (1,200 m).

The key to VDSL is that the phone companies are displacing many of their primary feeds with fiber-optic cable. Many phone companies are preparing Fiber to the Curb (FTTC), which suggests that they’re going to replace all existing copper lines right up to the purpose where your telephone line branches off at your house. At the smallest amount, most companies expect to implement Fiber to the Neighborhood (FTTN). Rather than installing fiber-optic cable along each street, FTTN has fiber getting to the greatest junction box for a particular neighborhood.

By putting a VDSL transceiver in your home and a VDSL gateway within the junction box, the space constraint is neatly overcome. The gateway takes care of the analog-digital-analog conversion barrier that disables ADSL over fiber-optic lines. It converts the info received from the transceiver into pulses of sunshine which will be transmitted over the fiber-optic system to the headquarters, where the info is routed to the acceptable network to succeed in its final destination. When information is shipped back to your computer, the VDSL gateway converts the signal from the fiber-optic cable and sends it to the transceiver. All of this happens many times each second! ADSL and VDSL are just two delegates of the DSL spectrum. On the subsequent page, you will find a chart that lists the variations and the way they compare to every other.

Netgear Ac1600 Wifi VdslAdsl Modem Router
Netgear Ac1600 Wifi VdslAdsl Modem Router

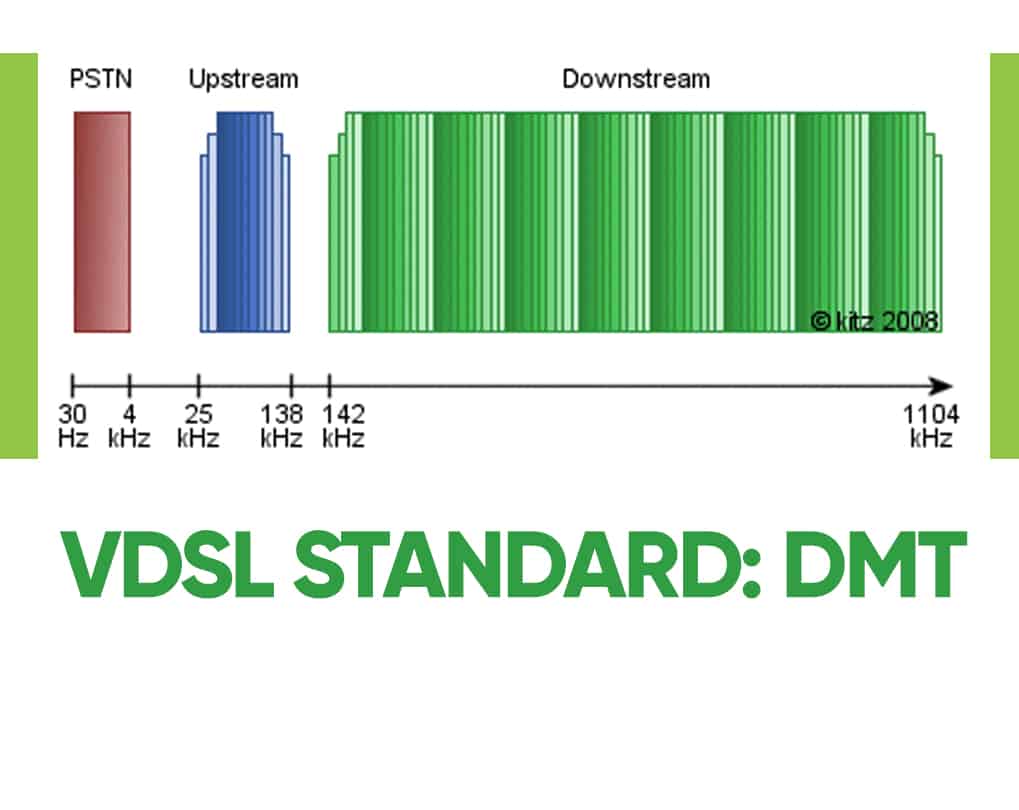

VDSL Standard: DMT

After an extended standards battle between the VDSL Alliance, a partnership between Alcatel, Texas Instruments et al., which supports VDSL employing a carrier system called Discrete MultiTone (DMT), and therefore the VDSL Coalition, led by Lucent and Broadcom and proposing a carrier system that uses a pair of technologies called Quadrature AM (QAM) and Carrier less Amplitude Phase (CAP), DMT won out. Consistent with equipment manufacturers, most ADSL equipment today uses DMT technology.

DMT separates signals into 247 separate channels, each 4 kilohertz (kHz, or 1,000 cycles per second) wide. A system to think it’s to imagine that the telephone company shares your copper line into 247 different 4-KHz lines and connects a modem to everyone. You take the equivalent of 247 modems connected to your computer at once!

Each channel is monitored and, if the standard is just too impaired, the signal is shifted to a different channel. This technique continually turns signals, checking out the simplest channels for transmission and reception. Besides, a number of the lower channels (those starting at about 8 kHz) are used as bidirectional channels, for both upstream and downstream information. Monitoring and checking out the knowledge on the bidirectional channels, and maintaining the standard of all 247 channels, makes DMT more complex to implement than other carrier technologies but also gives it more adaptability on lines of differing quality.


Q: What is the main difference between ADSL and VDSL modem?
ADSL (Asymmetric Digital Subscriber Line) uses copper telephone wires for transmitting digital information like data, audio, and video, at a high bandwidth. VDSL (Very high bit-rate digital subscriber line) may be a newer technology. Like ADSL, VDSL uses your copper telephone line but delivers a faster connection speed.

Q: Will a VDSL modem work with NBN?
No, put simply a VDSL may be a sort of modem. You’ll need a VDSL modem to access the high-speed NBN service if you are doing not have a DSLAM attached to your premises. If you are doing have a DSLAM hooked, then you’ll want your modem to possess a WAN port to attach to the web source.

Q: Can the ADSL modem be used for VDSL?
No, it might not work, like ADSL, ADSL2, and VDSL are all different standards on an equivalent family of technology, DSL. Yes. I’m employing a D-Link 2750u modem for a VDSL connection of 16 MBPS for quite two years.


As we all know, fast internet connections have grown swiftly over the last few years & most people buy home computers and generate their own network to connect with the world. In addition, the demand for broadband connections is also gradually growing. Hence, VDSL works as a data translator linking your device to the internet service provider and then granting access to the internet service. There are many VDSL modems routers if you want to buy them but first check their reviews.
